Oxygen Regulator

Description

The Allied Healthcare B & F Oxygen Pressure Regulator is a convenient oxygen regulator suitable for homecare, hospital and emergency situation.

Warranty: 1 Year.

The B & F Oxygen Pressure Regulator is versatile with an array of options and configurations to choose from (see Configurations chart below), to fit the needs of your hospital or homecare oxygen supply. With their large, easy-to-read gauges, the regulators can accurately display flow rate numbers during operation.

Features

  • Nickel-plated brass body for oxygen use.

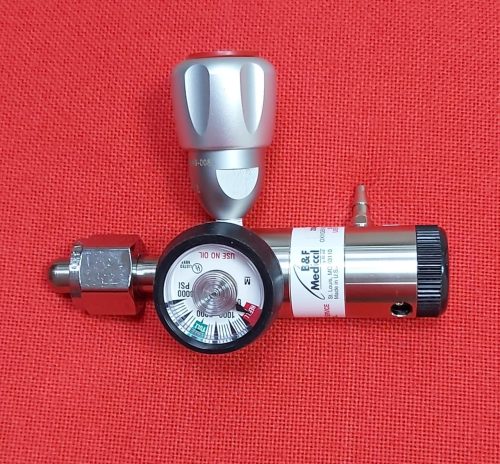

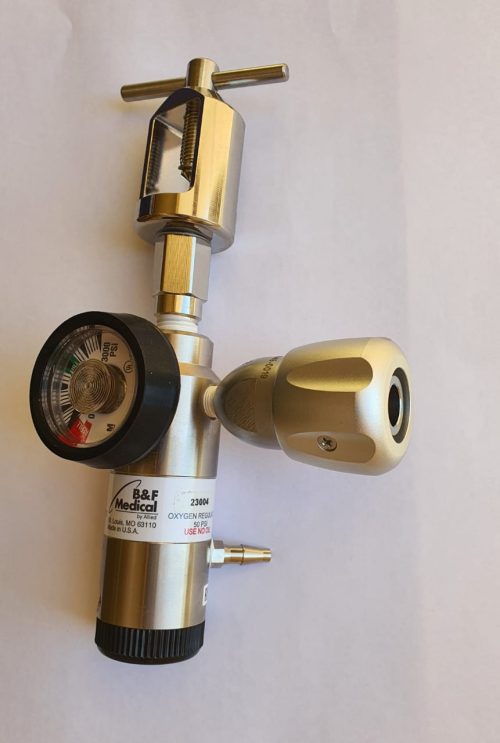

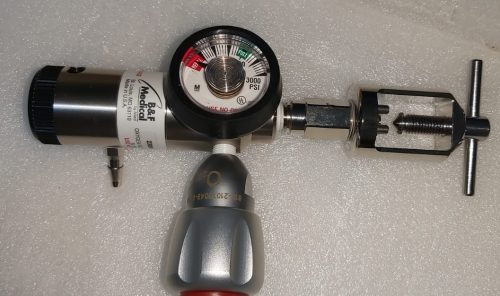

  • Choice between two body designs: yoke inlet for small cylinders, nut and nipple inlet for large cylinders.
  • Large, easy-to-read gauge.
  • Strengthened, uni-body construction prevents breakage.

Specifications

    • Supply Pressure: 500 to 2200 psi.
    • Outlet Pressure:
      • High flow outlets: 40 to 60 psi at 500 to 2200 psi inlet pressure.
    • Flow Capacity:
      • High flow outlets: 100 lpm minimum single or combined flow with 500 psi inlet pressure.
      • Constant flow outlet selections:
        • 0 – 6 lpm: 0, .125, .25, .5, .75, 1, 1.5, 2, 3, 4, 5, 6.
        • 0 – 8 lpm: 0, .5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8.
        • 0 – 15 lpm: 0, .5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 15.
        • 0 – 25 lpm: 0, 1, 2, 4, 6, 8, 10, 12, 15, 18, 20, 25.
    • Filter: 50 micron sintered bronze.
    • Safety Pressure Relief: 75 to 140 psi.
    • Operating Temperature: 32° F to 100° F.
    • Storage Temperature: -20° F to 120° F.
    • Materials:
      • Body: Nickel-plated brass.
      • Knob: ABS polymer.
      • Outlets: Nickel-plated brass.
      • Internal Parts: Brass, stainless steel, Viton, silicon, and Teflon.

Technical Details:

Download Technical Brochure

MPNInletOutletFlow RateCheck ValveGauge
#23002CGA 540DISS0 – 8 lpmNoYes
#23003CGA 540DISS0 – 15 lpmNoYes
#23003-CECGA 540DISS0 – 15 lpmNokPa
#23004CGA 540>Hose Barb0 – 15 lpm1Yes
#23006CGA 540Hose Barb0 – 15 lpm2Yes
#23006-CEBNBritish BullnoseHose Barb0 – 15 lpm2kPa
#23025-GCGA 540Hose Barb0 – 25 lpm2Yes
#21020CGA 870Hose Barb0 – 6 lpmNoYes
#22020CGA 870DISS0 – 6 lpmNoYes
#21014CGA 870Hose Barb0 – 8 lpmNoYes
#23014CGA 870DISS0 – 8 lpmNoYes
#21007CGA 870Hose Barb0 – 15 lpmNoNo
#21012CGA 870Hose Barb0 – 15 lpm2Yes
#21017CGA 870Hose Barb0 – 15 lpmNoYes
#21017-CECGA 870Hose Barb0 – 15 lpmNokPa
#21017-CEBARCGA 870Hose Barb0 – 15 lpmNoBAR
#23017CGA 870DISS0 – 15 lpmNoYes
#24017CGA 870Hose Barb0 – 15 lpm1Yes
#21025CGA 870Hose Barb0 – 25 lpm2Yes
#21025-CECGA 870Hose Barb0 – 25 lpm2kPa
#21030CGA 870Hose Barb0 – 25 lpmNoYes
#21031CGA 870DISS0 – 25 lpmNoYes
#21032CGA 870Hose Barb0 – 25 lpm1

Yes
